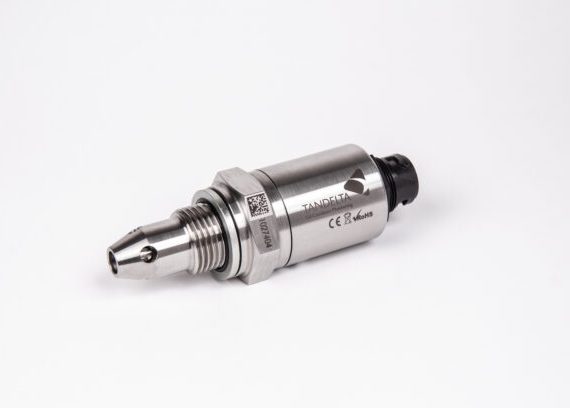

Condition Monitoring Sensor
Condition Monitoring Sensor
Real time oil condition analysis sensor with integrated intelligent equipment maintenance optimisation analytics for all industrial and commercial applications. OQSx-G2 delivers the ultimate high-quality real-time oil condition analysis. This enables multiple tangible operating benefits that include reduced maintenance costs, improved reliability, reduced oil wastage, and extended equipment life. Our unique FSH™ core technology analyses oil condition holistically, detecting, measuring and tracking all and any contamination or wear with 0.01% sensitivity (100ppm) – other sensor systems typically look at specific parameters and ignore others. This unmatched real-time complete oil analysis capability is achieved through continuous analysis of the electro-chemical properties of the oil at a molecular level. OQSx-G2 analysis data provides unrivalled high-confidence insight into real-time equipment health and maintenance status. Reliable forecasting and planning of maintenance based upon actual equipment need and thus extended optimised maintenance intervals and reduced cost becomes possible; with the assurance and safety of continuous over-watch that detects any unexpected anomalies and or contamination. OQSx-G2 works with any oil type and is easily fitted to any equipment operating in any environment or application.
REAL TIME ANALYSIS
Continuous real-time oil condition analysis with 0.01% sensitivity, detecting and reporting changes caused by wear and or contamination.
RELIABLE ACCURACY
Our unique molecular level analysis technology means that the smallest changes down to 100ppm are detected and reported in real time. This enables us reliably track oil wear and immediately detect contamination or equipment issues at the earliest stage
ANY OIL TYPE AND EQUIPMENT
Can be fitted and used on any equipment type operating in any environment using any oil type - mineral or synthetic
REDUCE MAINTENANCE COSTS
Enables you to predict and pinpoint when equipment requires maintenance and oil is truly at the end of its life. This typically enables you to safely extend intervals between maintenance and reduce associated costs by approximately 30% per year
REDUCED DOWNTIME
Unseen equipment issues cause subtle changes to oil condition, which are detected and alerted, enabling pre-emptive maintenance before failure or major damage and/or accelerated wear
ENVIRONMENTAL (ESG) TARGETS
Safely maximise oil use to reduce consumption by approximately 30% per annum. Reduce parts consumption and extend equipment life
Technical Specifications
Product Information
Name
Product Number
Gen 2 - Oil Quality Sensor
OQSxG2-1-XX-XX-5
| Name | Product Number |
|---|---|
| Gen 2 - Oil Quality Sensor | OQSxG2-1-XX-XX-5 |
Physical
Material

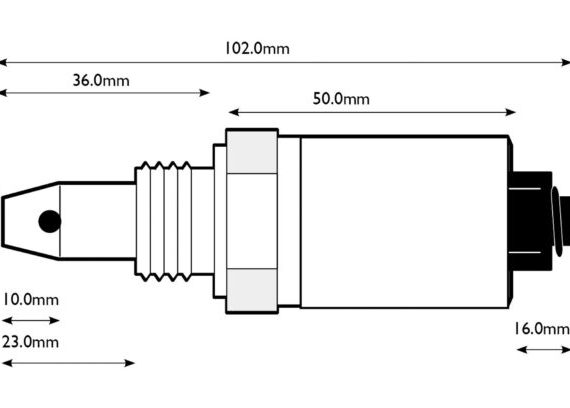

Dimensions
Weight
Connection
Torque
Stainless Steel AISI304
102mm x 36mm (L x W)
180g
32mm AF Hex Collar
25N m
| Material | Dimensions | Weight | Connection | Torque |
|---|---|---|---|---|
| Stainless Steel AISI304 | 102mm x 36mm (L x W) | 180g | 32mm AF Hex Collar | 25N m |
Available Threads
Thread
Seal
1/2” BSPP
Dowty Type
1/2” NPT
n/a
7/8” UNF
‘O’ Ring
M18
| Thread | Seal |
|---|---|
| 1/2” BSPP | Dowty Type |
| 1/2” NPT | n/a |
| 7/8” UNF | ‘O’ Ring |
| M18 | Dowty Type |
Connectors
Connector
6-Pin Bulgin PXP4013/06P/PC
| Connector |
|---|
| 6-Pin Bulgin PXP4013/06P/PC |
Electrical
Supply
Consumption
+9-30 V DC
0.4w Average
| Supply | Consumption |
|---|---|
| +9-30 V DC | 0.4w Average |
Data Output / Input
Digital Output
Protocols Supported
Analog Output
RS485, CANbus
Modbus, CanOpen and J1939
4-20mA
| Digital Output | Protocols Supported | Analog Output |
|---|---|---|
| RS485, CANbus | Modbus, CanOpen and J1939 | 4-20mA |
Oil Quality Detection Parameters
Frequency
Output
Accuracy
Elements
Every 2 seconds
Tan Delta Number (TDN)
0.01%
All wear and contamination
Oil Temperature (°C or °F)
| Frequency | Output | Accuracy | Elements |
|---|---|---|---|
| Every 2 seconds | Tan Delta Number (TDN) | 0.01% | All wear and contamination |
| Oil Temperature (°C or °F) |
Environmental
Operating Temperature
Calibrated Temperature
Fluid Temperature
Fluid Pressure
Storage Temperature
-40°C (-40°F) to +120°C (+248°F)
-20°C (-4°F) to +120°C (+248°F)
up to 70 bar (1015 psi)
-55°C (-67°F) to +150°C (+302°F)
| Operating Temperature | Calibrated Temperature | Fluid Temperature | Fluid Pressure | Storage Temperature |
|---|---|---|---|---|
| -40°C (-40°F) to +120°C (+248°F) | -20°C (-4°F) to +120°C (+248°F) | -40°C (-40°F) to +120°C (+248°F) | up to 70 bar (1015 psi) | -55°C (-67°F) to +150°C (+302°F) |
Standards & Certification
Water & Dust
Shock & Vibration
EMC
Conformity
IP68 when connected
BS EN 60068-2-30 (Test Db - Cyc.Hum.)
EN 61000-6-4:2007 (Generic Emissions Standard for Industrial Environments)
CE Marked
BS EN 60068-2-6 (Test Fc - Sine Vib.)
EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments)
BS EN 60068-2-27 (Test Ea - Mech.Shock)
| Water & Dust | Shock & Vibration | EMC | Conformity |
|---|---|---|---|
| IP68 when connected | BS EN 60068-2-30 (Test Db - Cyc.Hum.) | EN 61000-6-4:2007 (Generic Emissions Standard for Industrial Environments) | CE Marked |
| BS EN 60068-2-6 (Test Fc - Sine Vib.) | EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments) | EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments) | |
| BS EN 60068-2-27 (Test Ea - Mech.Shock) |
